Application Scenario: for level measurement of powders or fine-grained solids

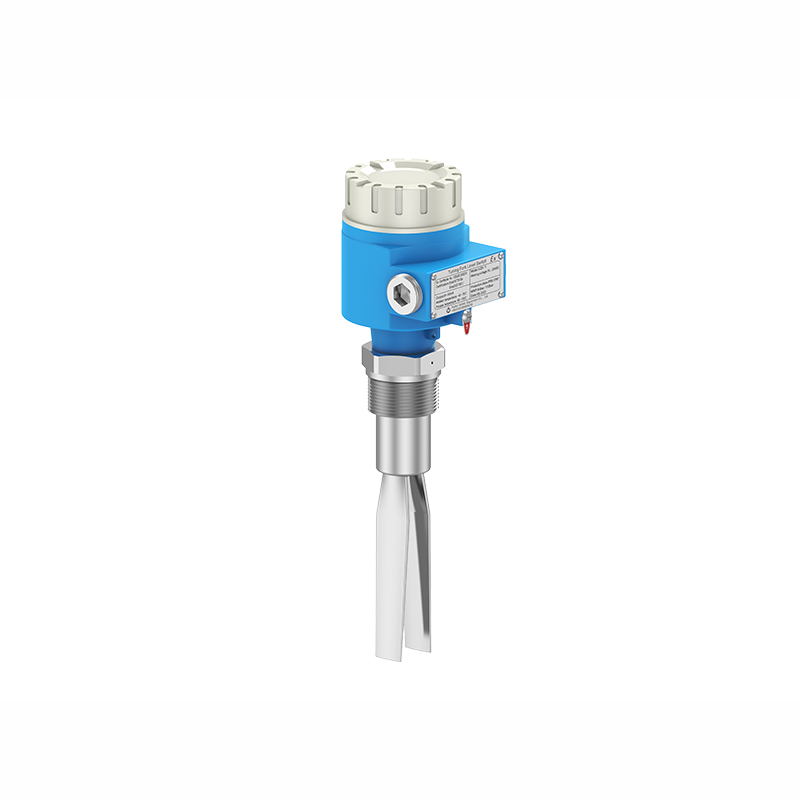

UZK-Y(W) Tuning Fork Solids Level Switch is a kind of solid material level switch specially for measuring powder and fine particles, which can measure fine sand, fine chemical materials, flour, salt and other materials with the lowest density of 0.008g/cm3, especially suitable for ultra-low density material level measurement, with wide adaptability and high reliability.
| Applicable Liquids | Type of Medium | Powder, Fine Granular Materials |
| Medium Density | 0.008g/cm3 | |
| Particle size | Up to 10mm | |
| Probe Parameters | Vibration Frequency | 200Hz |
| Fork Body Length | 165mm | |
| Response Times | Contact with Materials | 0.5S |
| No Materials | 1S | |
| Power Input | Relay Type | 20~250V AC/20~72V DC |
| Two-wire Type | 10~36V DC | |
| Power Consumption | AC, 1~8VA; DC, 1.5W | |
| Signal Output | Relay | DPDT, 5A/253V AC/24V DC |
| Two-wire | 8mA/16mA, Alarm＜2.3mA | |
| Environmental Conditions | Process Pressure | -1~25bar |
| Process Temperature | -50~+300℃ | |
| Environmental Temperature | -40~+70℃ | |
| Safety Certification | Protection Class | IP66/IP67/IP68 |
| Explosion-proof Grade | Flameproof type: Ex db IIC T6 Gb Intrinsic Safety: Ex ia IIC T6 Ga | |
| Material | Housing | Aluminum, 316L |
| Fork Body | 316L |
1.Self-check feature can accurately locate fault information;
2.The fork body has a compact design, which can be detected is 0.008g/cm³;
3.The integrated design of the long fork body allows for better fork consistency and stability, eliminating the need to adjust fork body mass.
