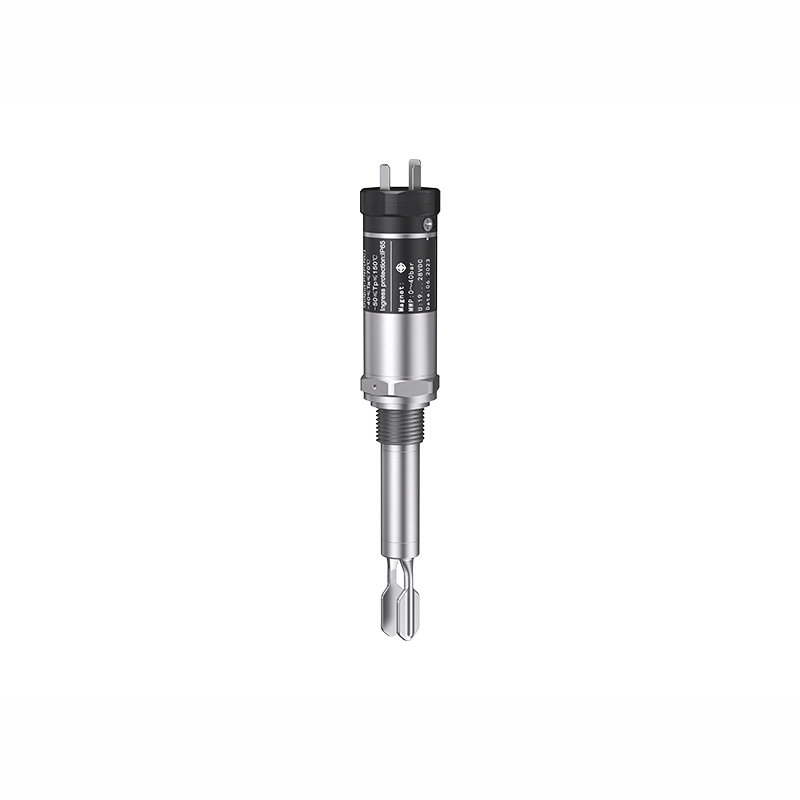

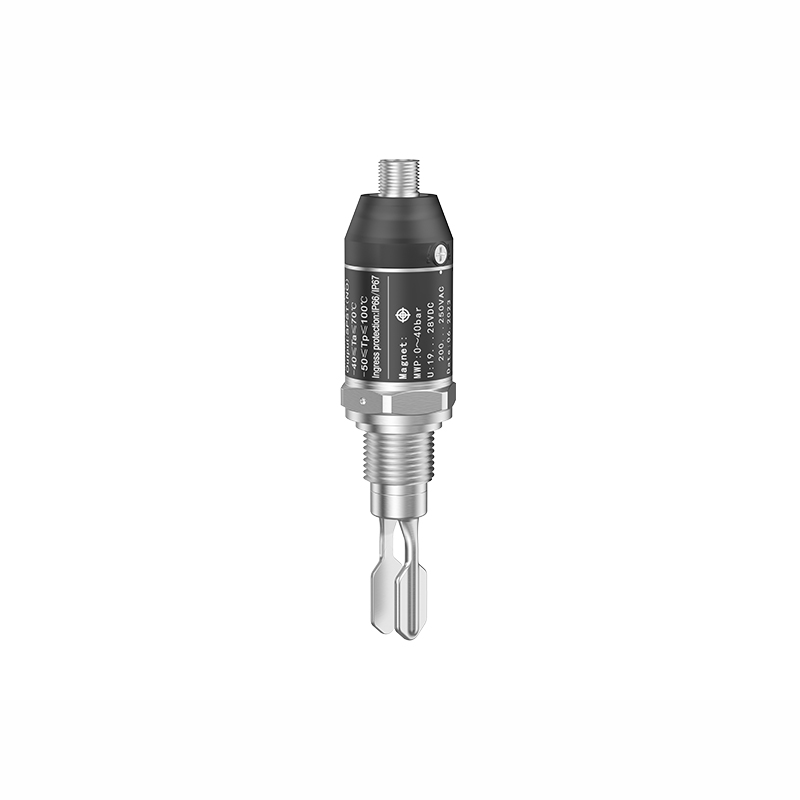

Compact Vibrating Level Switch - UZK-Y(J)

  • Application Scenario: for liquid level measurement in pipelines or narrow spaces with low-cost requirements and non-explosion-proof occasions

UZK-Y(J) compact tuning fork level switch has a fork body length of only 38mm, which requires narrow spaces for installation and can be installed in containers and pipelines. It can measure the minimum liquid density of 0.5g/cm3, which is an ideal substitute for float switches and capacitive sensors.

Applicable LiquidsDensityLarger than 0.5g/cm3
Flow RateUp to 6m/s
Probe ParametersVibration Frequency1100Hz
Fork Body Length38mm
PrecisionMeasurement deviation±1mm
Switching DelayContact with Materials0.5S
No Materials1S
Power InputRelay Type200~250V AC/19~28V DC
Three-wire Type19~28V DC
Power Consumption<1W
Connector typeM12 Circular Connector/Hirschmann
Signal OutputRelaySPST, 125V AC/60V DC
Three-wirePNP, NPN
Environmental ConditionsProcess Pressure-1~40bar
Process Temperature-50~+100℃/+150℃
Environmental Temperature-40~+70℃
Safety CertificationProtection ClassIP66/IP67, IP65
Hygiene CertificationGB4806.9-2016, FDA
MaterialFlange316L, 316L Coating Enamel, 316 Coating ECTFE, 316L Coating PFA
Fork Body316L, 316L Coating Enamel, 316 Coating ECTFE, 316L Coating PFA

1.Easy to install with narrow space required for equipment installation;

2.The high and low liquid level mode can be selected by the knob resistor;

3.Magnet debugging function: about 1s after the magnet is close to the standard point, alarm signal will be output.
