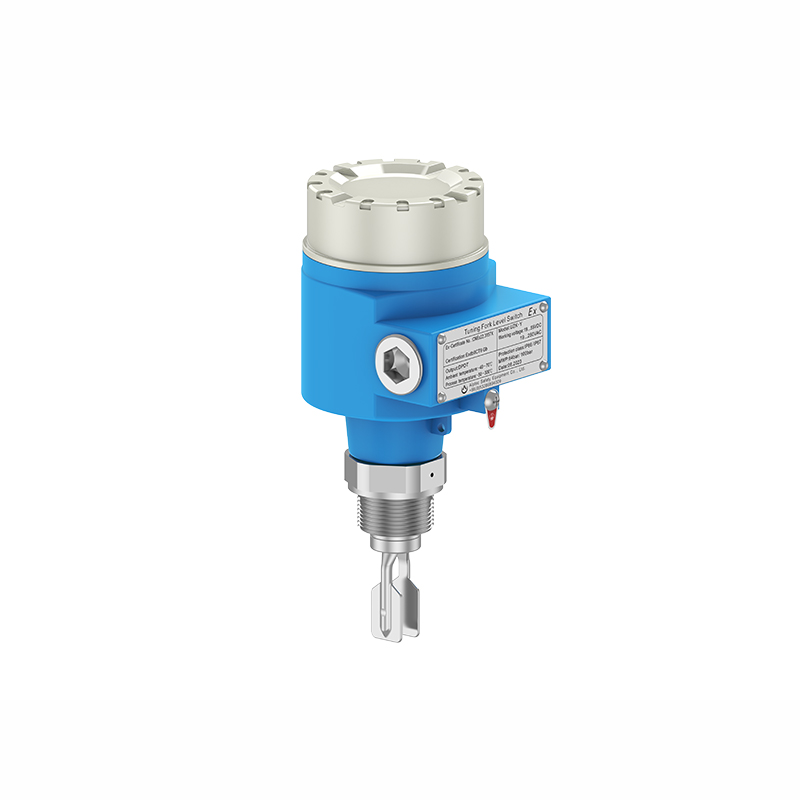

Regular Vibrating Level Switch - UZK-Y-01

  • Application Scenario: for level measurement in spaces such as containers, tanks, etc.

Tuning Fork Level Switch is a high-reliability control switch dedicated to liquid level measurement. The length of the fork body is only 40mm, which is suitable for liquid level measurement in narrow spaces of pipes. The fork body is precisely tuned, and the lowest density of liquids that can be detected is 0.5g/cm³.

Applicable LiquidsDensityLarger than 0.5g/cm3
Flow RateUp to 6m/s
Probe ParametersVibration Frequency1000Hz
Fork Body Length40mm
PrecisionMeasurement deviation±1mm
Switching DelayContact with Materials0.5S
No Materials1S
Power InputRelay Type20~250V AC/20~72V DC
Two-wire Type10~36V DC
Power ConsumptionAC, 1~8VA; DC, 1.5W
Signal OutputRelayDPDT, 5A/253V AC/24V DC
Two-wire8mA/16mA, Alarm<2.3mA
Three-wirePNP Signal
Environmental ConditionsProcess Pressure-1~100bar
Process Temperature-50~+300℃
Environmental Temperature-40~+70℃
Safety CertificationProtection ClassIP66/IP67/IP68
Explosion-proof GradeFlameproof type: Ex db IIC T6 Gb
Intrinsic Safety: Ex ia IIC T6 Ga
MaterialFlange316L, 316L Coating Enamel, 316 Coating ECTFE, 316L Coating PFA
Fork Body316L, 316L Coating Enamel, 316 Coating ECTFE, 316L Coating PFA

1.Device has fine workmanship and high stability;

2.Self-check feature can accurately locate fault information;

3.The production process has an invention patent, which improves the reliability of the device;

4.Variable fork body lengths allow for products customization to multiple specifications.
