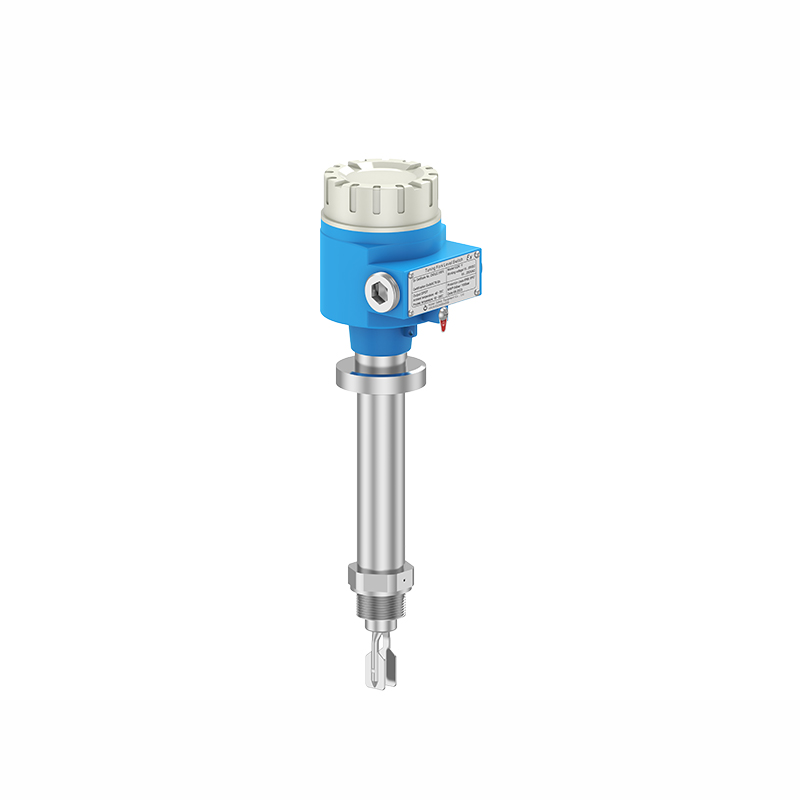

High-temperature Vibrating Level Switch - UZK-Y-03

  • Application Scenario: for high temperature zone. The best choice for limit level detection of high temperature liquids

High-temperature Tuning Fork Level Switch is a high-reliability control switch dedicated to high temperature liquid level measurement. Based on the design principle of detecting the change of the vibration frequency of the fork body immersed in the medium, it is also suitable for liquid level measurement occasions in narrow spaces such as various vessels, steam pots, tanks, and pipelines. The fork body is precisely tuned, and the lowest density of liquids that can be detected is 0.5g/cm³. The device can be selected to measure medium with temperatures above 150°C and the medium temperature can reach up to 280°C.

Applicable LiquidsDensityLarger than 0.5g/cm3
Flow RateUp to 6m/s
Probe ParametersVibration Frequency1000Hz
Fork Body Length40mm
PrecisionMeasurement deviation±1mm
Switching DelayContact with Materials0.5S
No Materials1S
Power InputRelay Type20~250V AC/20~72V DC
Two-wire Type10~36V DC
Power ConsumptionAC, 1~8VA; DC, 1.5W
Signal OutputRelayDPDT, 5A/253V AC/24V DC
Two-wire8mA/16mA, Alarm<2.3mA
Three-wirePNP Signal
Environmental ConditionsProcess Pressure-1~100bar
Process Temperature-50~+300℃
Environmental Temperature-40~+70℃
Safety CertificationProtection ClassIP66/IP67/IP68
Explosion-proof GradeFlameproof type: Ex db IIC T6 Gb
MaterialFlange316L, 316L Coating Enamel, 316 Coating ECTFE, 316L Coating PFA
Fork Body316L, 316L Coating Enamel, 316 Coating ECTFE, 316L Coating PFA

1.It adopts high temperature resistant design, and the medium temperature can reach up to 300°C, leading the industry;

2.The production process has invention patents, which improves the reliability of products;

3.Unaffected by external vibration and turbulence;

4.Self-check feature can accurately locate fault information;

5.No need to calibrated and easy to install.
